| اسم المنتجات: | اقتصادية 1.5 واط وسادة سيليكون حرارية موصلة حرارية حشوة سيليكون وسادة حرارية سيليكون عالية التوصيل | صلابة: | 12 ± 5 شور 00 |
|---|---|---|---|
| عينة: | عينة مجانية | سماكة: | 0.020 "(0.5 مم) ~ 0.200" (5.0 مم) |
| الكلمات الرئيسية: | وسادة حرارية السيليكون | الموصلية الحرارية: | 1.5 واط / م ك |
| درجة حرارة الاستخدام المستمر: | -45 إلى 200 درجة مئوية | لون: | أزرق |
| طلب: | وحدات الذاكرة، وأجهزة التخزين كبيرة السعة وما إلى ذلك. | ||
| إبراز: | 1.5W thermal silicone pad,thermal conductive gap filler,high conductive silicone thermal pad,thermal conductive gap filler,high conductive silicone thermal pad |
||

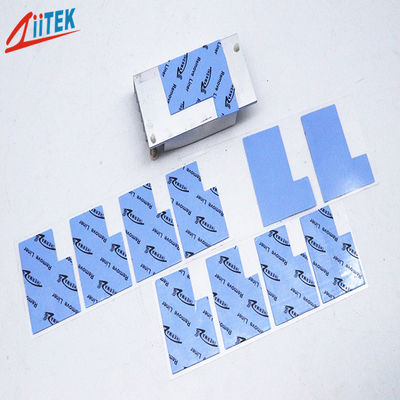

Economical 1.5W Thermal Silicone Pad Thermal Conductive Gap Filler Silicone Pad High Conductive Silicone Thermal Pad
The TIF®100-05ES Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy.This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
Applications

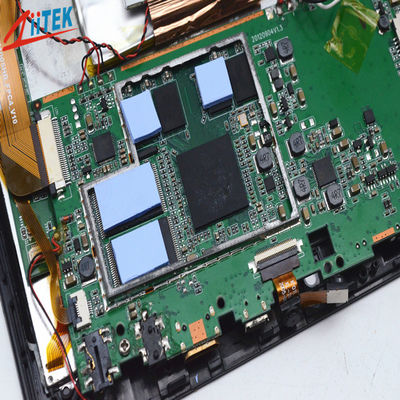

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
| Typical Properties of TIF®100-05ES Series | |||
| Property | Value | Test method | |
| Color | Blue | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(0.50mm) | ASTM D374 | |
| Specific Gravity | 2.0g/cc | ASTM D297 | |
| Hardness | 12±5 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Outgassing(TML) | 0.35% | ASTM E595 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Factory Size:8000~10,000 square meters
Factory Country/Region:No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
