| اسم المنتج: | ورقة فائقة النعومة موصلة حرارياً للمنتجات الإلكترونية لتخزين الطاقة الصناعية | كثافة: | 3.2 غرام/سم3 |
|---|---|---|---|
| لون: | بكيك | طلب: | المنتجات الالكترونية وتخزين الطاقة والصناعية |
| صلابة (الشاطئ 00): | 65/27 | مواد: | مطاط السيليكون المملوء بالسيراميك |
| الموصلية الحرارية: | 6.0 واط / م كلفن | درجة حرارة التشغيل: | -40 ~ 200 ℃ |
| الكلمات الرئيسية: | ورقة موصلة حراريا |

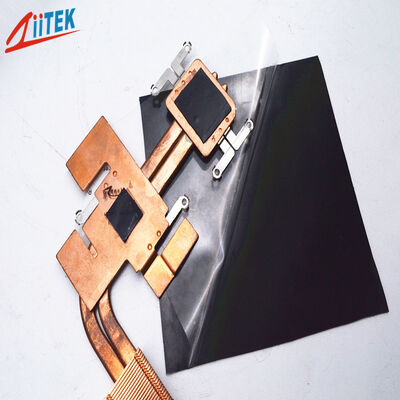

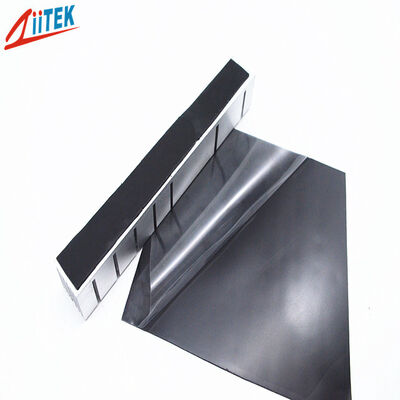

Ultra-Soft Thermally Conductive Sheet For Electronic Products Energy Storage Industrial
The TIF®100-60-01U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features:
> Good thermal conductive: 6.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Moldability for complex parts
> Broad range of hardnesses available
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
| Typical Properties of TIF®100-60-01U Series | |||
| Property | Value | Test method | |
| Color | Black | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.0 W/m-K | ASTM D5470 | |
| 6.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness:0.010" (0.25 mm)~0.200 (5.00 mm) with increments of 0.010 (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
TheTIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
