تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتجات: | وسادة حرارية فائقة النعومة ذات مقاومة حرارية منخفضة لشبكات الجيل الخامس والفضاء والذكاء الاصطناعي وا | سماكة: | 0.010 بوصة (0.25 مم) ~ 0.200 بوصة (5.0 مم) |
|---|---|---|---|
| الموصلية الحرارية: | 5.0 واط / م ك | الكلمات الرئيسية: | وسادة حرارية ناعمة للغاية |
| صلابة: | 10 شاطئ 00 | كثافة: | 3.3g/cm³ |
| لون: | رمادي غامق | درجة حرارة التشغيل الموصى بها: | -40 إلى 200 درجة مئوية |
| طلب: | الجيل الخامس، الفضاء الجوي، الذكاء الاصطناعي، المركبات الكهربائية |

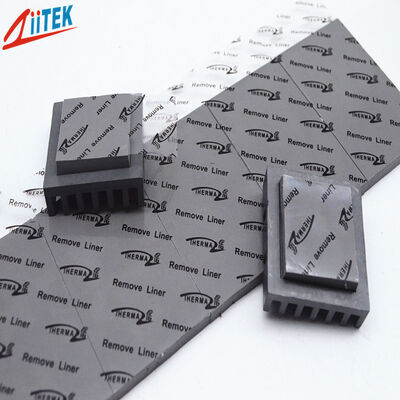

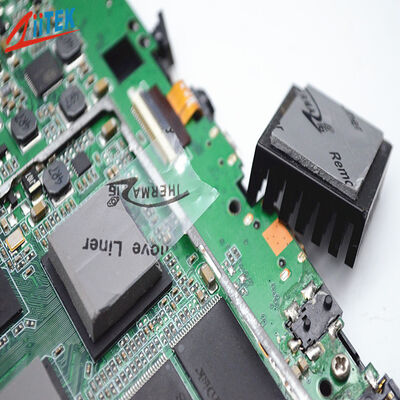

Low Thermal Impedance Ultra Soft Thermal Pad For 5G, Aerospace, AI, Electric Vehicle
The TIF®100-50-11ES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filing of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance, and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.
Features
> Good thermal conductive: 5.0W/mK
> Moldability for complex parts
> Broad range of hardnesses available
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Home appliance industry
> CPU
> Display card
> Mainboard/mother board
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
| Typical Properties of TIF®100-50-11ES Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.3 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| (0.50~0.75) | (1.0~5.0) | ||
| Hardness | 10 Shore 00 | 10 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @ 1MHz | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0W/m-K | ASTM D5470 | |
| 5.0W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.
