تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتجات: | تبديد جيد للحرارة وسادة حرارية من السيليكون بقدرة 7.5 وات لمعالجات الذكاء الاصطناعي وخوادم الذكاء ال | تطبيق: | معالجات الذكاء الاصطناعي خوادم الذكاء الاصطناعي |
|---|---|---|---|
| لون: | رمادي | صلابة: | 20 شاطئ 00 |
| الكلمات الرئيسية: | وسادة حرارية السيليكون | الكثافة (جم / م 3): | 3.2 |
| درجة حرارة التشغيل الموصى بها (درجة مئوية): | -40 إلى 200 درجة مئوية | جهد انهيار العزل الكهربائي (V/mm): | ≥5500 |
| الموصلية الحرارية: | 7.5 وات/م ك |

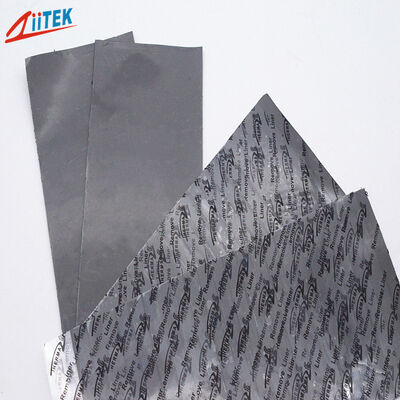

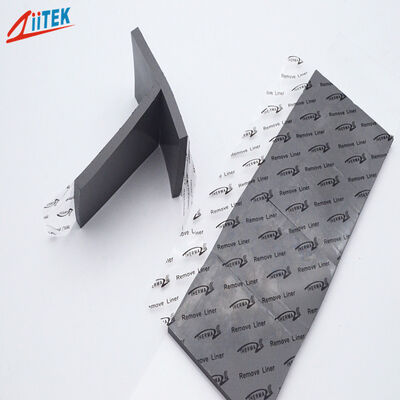

Good Heat Dissipation 7.5W Silicone Thermal Pad For AI Processors AI Servers
| Typical Properties of TIF®700PUS Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| 0.50~0.75 | 1.0~5.0 | ||
| Hardness | 70 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 4.5 | ASTM D150 | |
| Volume Resistivity | ＞3.5 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 7.5 W/m-K | ASTM D5470 | |
| 7.5 W/m-K | ISO22007 | ||
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
Company profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
