| اسم المنتجات: | وسادات جل السيليكون الحرارية لنقل الحرارة بقدرة 7.5 وات لخوادم الذكاء الاصطناعي ومعالجات الذكاء الاص | سماكة: | 0.50 مم ~ 5.0 مم |
|---|---|---|---|
| الموصلية الحرارية: | 7.5 وات/م ك | لون: | رمادي داكن |
| الكلمات الرئيسية: | منصات السيليكون الحرارية | طلب: | خوادم الذكاء الاصطناعي معالجات الذكاء الاصطناعي |
| الكثافة (جم / سم مكعب): | 3.45 | بناء: | مطاط السيليكون المملوء بالسيراميك |

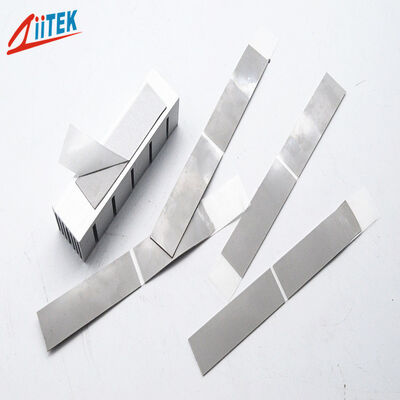

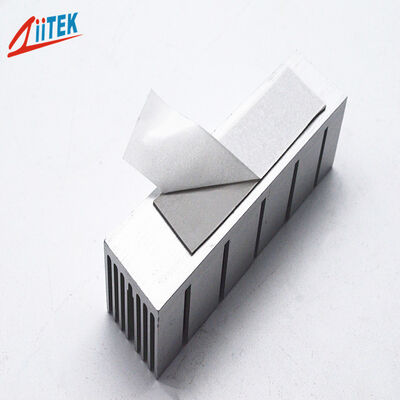

7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors
The TIF®500-75-11US thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive: 7.5W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications:
> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
| Typical Properties of TIF®500-75-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.45 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.020~0.030 (0.50~0.75) |
0.040~0.200 (1.00~5.00) |
ASTM D374 |
| Hardness | 50 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 8.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal conductivity(w/m-K) | 7.5 | ASTM D5470 | |
| 7.5 | ISO 22007 | ||
| Fire rating | V-0 | UL94 (E331100) | |
