| Products name: | High Performance 1.8W Thermal Conductive Pad Sheet Thermal Gap Filler For Telecommunication Equipment | Construction: | Ceramic filled silicone elastomer |
|---|---|---|---|
| Keywords: | Thermal Gap Filler | Density: | 2.7g/cc |
| Continuos Use Temp: | -45℃ to 200℃ | Hardness: | 20 Shore 00 |
| Color: | Gray | Thermal conductivity& Compostion: | 1.8W/m-K |
| Thickness: | 0.02~0.20inch / 0.5~5.0mmT | Application: | Telecommunication Equipment |
| إبراز: | Telecommunication Equipment Thermal Conductive Pad,1.8W Thermal Conductive Pad Sheet,Thermal Gap Filler For Telecom Equipment,1.8W Thermal Conductive Pad Sheet,Thermal Gap Filler For Telecom Equipment |
||

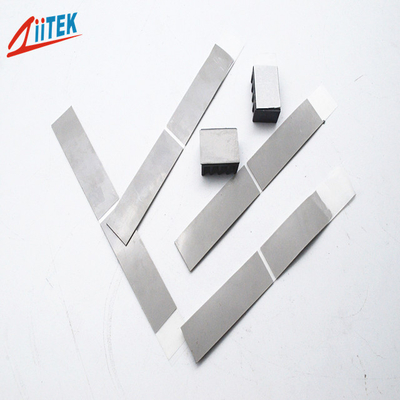

High Performance 1.8W Thermal Conductive Pad Sheet Thermal Gap Filler For Telecommunication Equipment
Products Description
TIF100-18-11US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive : 1.8W/mK
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options
> Easy release construction
> Electrically isolating
> High durability
Applications
> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
Key attributes
| Typical Properties of TIF100-18-11US | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ******* |
| Density | 2.7g/cc | ASTM D297 |
| Thickness range | 0.02~0.20inch / 0.5~5.0mmT | ASTM C351 |
| Hardness | 20 Shore 00 | ASTM 2240 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D412 |
| Operating Temp | -45~200℃ | ******* |
| Dielectric Constant | 4.5MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X1012Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 1.8W/mK | ASTM D5470 |
Product Specifications
Standard Thickness:0.02" (0.50 mm)-0.20” (5.00 mm) with increments of 0.01" (0.25 mm).
Standard Size: 16"×16" (406 mmX406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is availableincustom shapes and various forms.For other thicknesses ormore information, please contact us.

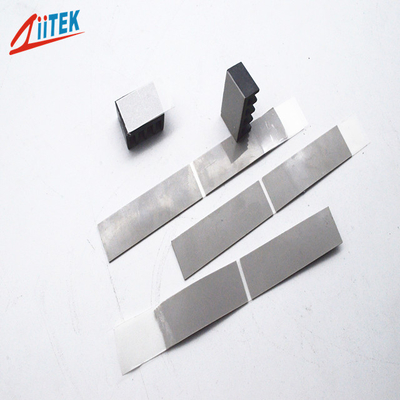

Details Images
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
