تفاصيل المنتج:
|
| طلب: | شاشات العرض المسطحة | الكلمات الرئيسية: | وسادات حشو الفجوات موصلة حرارياً |
|---|---|---|---|
| صلابة: | 20 شاطئ 00 | لون: | رمادي غامق |
| الموصلية الحرارية: | 10.0 واط / م ك | اسم المنتجات: | عزل كهربائي ممتاز، موصلية حرارية عالية 10 وات/م ك، وسادات حشو فجوة موصلة حراريًا لشاشات العرض المسطح |
| جهد الانهيار (V/mm): | ≥5500 فولت تيار متردد | عينة: | حر |
| التشغيل الموصى به | درجة الحرارة (%22 درجة مئوية): | -40 إلى 200 درجة مئوية | الجاذبية النوعية: | 3.3 جرام/سم3 |

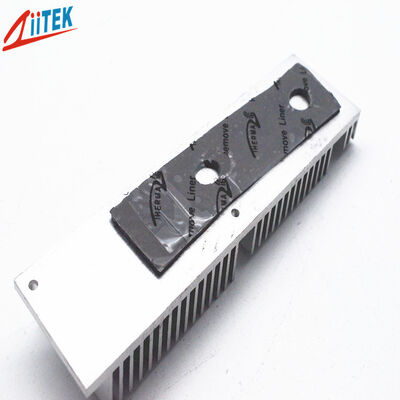

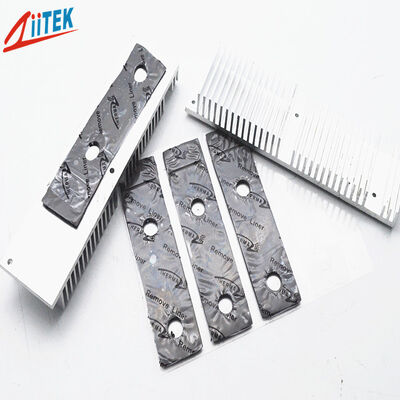

TIF®100 10020-11 Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
| Property | Value | Test Method |
|---|---|---|
| Color | Dark Gray | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 3.3 | ASTM D792 |
| Thickness Range (inch/mm) | 0.012~0.020 | 0.030~0.200 0.30~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 20 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @ 1MHz | 6.4 | ASTM D150 |
| Volume Resistivity (Ohm-meter) | ＞1.0*10¹² | ASTM D257 |
| Flame Rating | V-0 | UL 94 (E331100) |
| Thermal Conductivity | 10.0 W/m-K | ASTM D5470 ISO22007 |
Standard Thickness: 0.012" (0.30 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"*16" (406 mm*406 mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
