تفاصيل المنتج:
|
| اسم المنتجات: | مادة السيليكون ذات الوسادة الموصلة الحرارية مع الموصلية الحرارية 3.0W/mK لتطبيقات تبديد الحرارة لأدو | الموصلية الحرارية: | 3.0 واط / م ك |
|---|---|---|---|
| طلب: | تطبيقات تبديد الحرارة للأدوات الكهربائية | الكلمات الرئيسية: | وسادة موصلة للحرارة |
| صلابة: | 65/45 شور 00 | الجاذبية النوعية: | 3.0 جم/سم3 |
| التشغيل الموصى به | درجة الحرارة (%22 درجة مئوية): | -40 إلى 200 درجة مئوية | جهد الانهيار (V/mm): | ≥5500 فولت تيار متردد |
| لون: | أبيض |

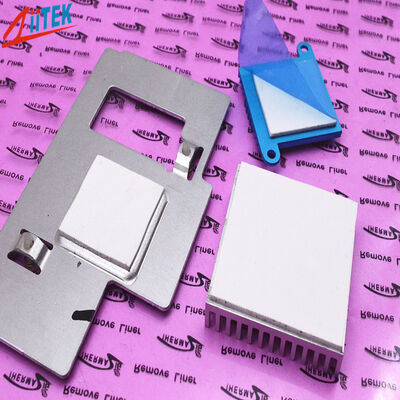

Thermal Conductive Pad Silicone Material with 3.0W/mK Thermal Conductivity for Power Tools Heat Dissipation Applications
Dongguan Ziitek Electronic Material and Technology Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years, and is a high-tech enterprise integrating R&D, production and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province and Viet Nam, the global delivery capacity is stable and reliable. Mainly engaged in thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. The core explosive heating plate is widely recognized by the market. Our products have passed ISO9001 and IATF16949 certification, and meet RoHS/UL standards, and are widely used in new energy, 5G, data center, automotive electronics and other fields.
| Typical Properties of TIF®100-30-06S Series | |||
| Property | Value | Test method | |
| Color | White | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness (Shroe 00) | 65 | 45 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant@ 1MHz | 5.2 | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
