تفاصيل المنتج:
|
| اسم المنتجات: | وسادة موصلة حرارية ناعمة لنقل الحرارة مع مواد واجهة حرارية سيليكون ناعمة قابلة للانضغاط ومقاومة للتم | سمك (بوصة / مم): | 0.012 بوصة/0.30 |
|---|---|---|---|
| الموصلية الحرارية: | 0.8 واط/م ك | صلابة: | 60 شاطئ 00 |
| ثابت العزل الكهربائي @1MHz: | 6.0 | تصنيف النار: | 94-V0 |
| الكلمات الرئيسية: | وسادة موصلة للحرارة | طلب: | لنقل الحرارة |

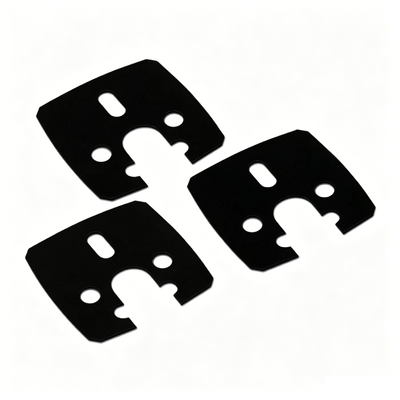

Soft Thermal Conductive Pad For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials

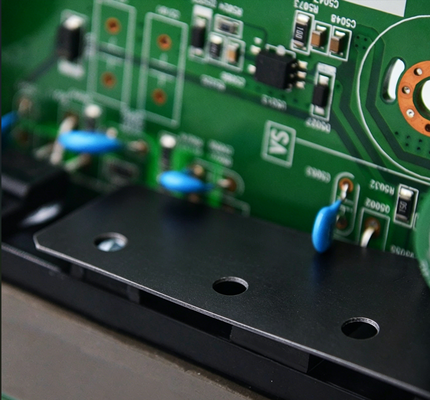

The TIF®100-08-01F Series is a high-efficiency thermal conductive insulating product. lt incorporates insulating silicone substrates into thermally conductive materials to achieve both insulation and heat conduction. At the same time, the glass fibers provide excellent tear and puncture resistance. The product is non-toxic and environmentally friendly, has flame-retardant properties, and is mainly used for isolating power supplies and heat sinks.
Features:
>Surface is relatively soft and has good heat conductivity
>Good dielectric strength
>Low thermal resistance with high voltage isolation
>Resistant to tears and punctures
Applications:
>Car battery and power supply
>Power semiconductors
>Audio and video components
>Motor controllers
| Typical Properties of TIF®100-18-01F Series | |||
| Property | Value | Test method | |
| Color | Black | Visual | |
| Construction | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 1.8 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.012 | 0.020 | ASTM D374 |
| 0.30 | 0.50 | ||
| Hardness (Shore 00) | 60 | ASTM 2240 | |
| Tensile Strength (Mpa) | 21 | ASTM D412 | |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5000 | ASTM D149 | |
| Dielectric Constant | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 0.8 W/m-K | ASTM D5470 | |
| 0.8 W/m-K | ISO22007 | ||
Products specification
Standard Thickness: 0.012" (0.30 mm),0.020" (0.50 mm)
Standard Size: 12"X160" (304 mmX48.7M)
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.اتصل شخص: Dana Dai
