تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتجات: | وسادات حرارية معتمدة من RoHS بقدرة 6.5 وات/MK وسادة تبريد من السيليكون مع ذاتية اللصق لأجهزة الكمبيو | صلابة: | 65/20 شور 00 |
|---|---|---|---|
| الكلمات الرئيسية: | وسادة تبريد من السيليكون | الموصلية الحرارية: | 6.5W/MK |
| لون: | رمادي غامق | درجة حرارة الاستخدام المستمر: | -40 إلى 200 درجة مئوية |
| عينة: | عينة مجانية | سماكة: | 0.010 بوصة (0.25 مم) ~ 0.200 بوصة (5.0 مم) |
| طلب: | الكمبيوتر المحمول الكمبيوتر | ||
| إبراز: | RoHS certified thermal pads,self-adhesive silicone cooling pad,6.5W/M.K PC laptop thermal pad,self-adhesive silicone cooling pad,6.5W/M.K PC laptop thermal pad |
||

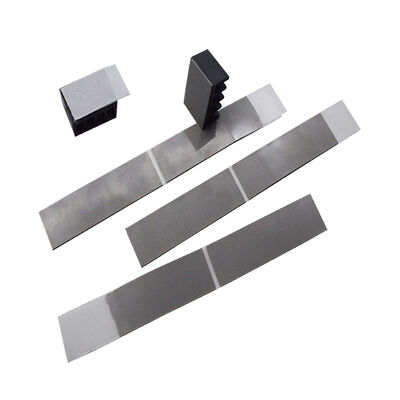

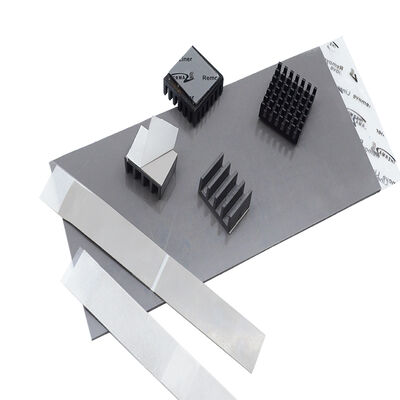

RoHS Certified 6.5W/M.K Thermal Pads Silicone Cooling Pad With Self-Adhesive For PC Laptop
The TIF®500-65-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features
> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Power Electronics
> Automotive Electronics
> Consumer Electronics
> Industrial Control
> New Energy
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®500-65-11US Series | |||
| Property | Value | Test method | |
| Color | Dark gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.45 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥ 5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 6.5 | ASTM D5470 | |
| 6.5 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
اتصل شخص: Dana Dai
الهاتف :: +86 18153789196
