تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم: | موصلية حرارية ممتازة 8.0 وات جل موصل حراري لمعدات المختبرات الأوتوماتيكية لأشباه الموصلات | البناء والتكوين: | مادة السيليكون المملوءة بالسيراميك |
|---|---|---|---|
| درجة حرارة التشغيل الموصى بها (°C): | -40-200 درجة مئوية | الكثافة (جم/م3): | 3.4 |
| الموصلية الحرارية: | 8.0 واط/م ك | تصنيف اللهب: | يو ال 94 فولت-0 |
| الكلمات الرئيسية: | غيل الحرارة السيليكوني | لون: | رمادي |
| طلب: | معدات المختبرات الأوتوماتيكية لأشباه الموصلات |

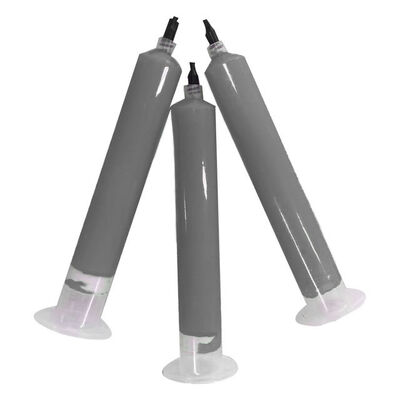

Excellent Thermal Conductivity 8.0W Thermal Conductive Gel For Semiconductor Automatic Laboratory Equipment
Company Profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Products desription
TIF®080-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, it has a higher viscosity, which efectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment.
Feature
> Excellent thermal conductivity: 8.0W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability
Application
> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controler
> Telecom industry
> Semiconductor automatic laboratory equipment
> Motherboard chip
> Radiator
> AI Processors AI Servers
| TIF®080-11 Typical Property | ||
| Property | Value | Test method |
| Color | Gray | Visual |
| Construction & Composition | Ceramic filled silicon material | ***** |
| Flow Rate(g/min) | 40 | Ziitek Test Methbod |
| (30cc syringe/ 2.5mm or rifice/90 psi) | ||
| Density(g/cm³) | 3.4 | ASTM D792 |
| Thermal conductivity(W/mK) | 8.0 | ASTM D5470 |
| Thermal Impedance @10Psi(℃-in²/W) | 0.065 | ASTM D5470 |
| Thermal Impedance @50Psi(℃-in²/W) | 0.060 | ASTM D5470 |
| Recommended Operating temp | -40~200℃ | ***** |
| Breakdown Voltage(V/mm) | ≥4000 | ASTM D149 |
| Bond line Thickness (mm) | 0.2 | Ziitek Test Method |
| Shelf life | 12 months | **** |
| Flame Rating | V-0 | UL 94 |
Packing details
30 cc/pcs, 50cc/pcs, 300 cc/pcs ,
Custom packaging available for automation use ,Please contact us for confirming.
If you want to know our thermal products, please visit our website.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
