تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتجات: | التوصيل الحراري للوسادة الحرارية فائقة النعومة بقدرة 3.0 وات/Mk لشبكات 5G Aerospace AI AIoT والسيارا | تصنيف اللهب: | يو ال 94 فولت-0 |
|---|---|---|---|
| صلابة: | 30 شور 00 | تطبيق: | 5G الفضاء AI AIoT والسيارات |
| الموصلية الحرارية: | 3.0 واط / م ك | استمرار استخدام درجة الحرارة: | -40 إلى 200 درجة مئوية |
| الجاذبية النوعية: | 3.0G/CC | الكلمات الرئيسية: | وسادة حرارية ناعمة للغاية |

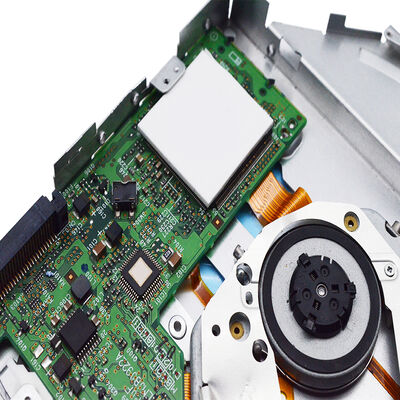

Thermal Conductivity Of 3.0W/Mk Ultra Soft Thermal Pad For 5G Aerospace AI AIoT And Automotive
The TIF®100 3030-06 Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness,achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
Company Profile
A silicone thermal pad is a type of thermal interface material (TIM) which is highly conductive and comprises of conformable materials which are used to provide a heat path between heat sinks and electronic devices where uneven surface topography, air gaps and texture preclude good thermal transfer. Ziitek supply a wide range of silicone thermal pads with varying properties to suit every application.
Features
> Good thermal conductive: 3.0W/mK
> Ultra-soft and highly conformable
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
Applications
Electronic Components,5G,Aerospace,AI, AIoT, AR/VR/MR/XR, Automotive,
Consumer Devices,Datacom,Electric Vehicle,Electronic Products,Energy
Storage,Industrial, Lighting Equipment,Medical, Military,Netcom,Panel, Power
Electronics,Robot,Servers,Smart Home,Telecom,etc.
| Typical Properties of The TIF®100 3030-06 Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.5) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 30 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 5.8 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
