تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتج: | وسادة سيليكون حرارية 5.0 وات ورقة تبديد الحرارة عالية التوصيل لخوادم الذكاء الاصطناعي والمحولات وأجه | لون: | رمادي داكن |
|---|---|---|---|
| تطبيق: | خوادم الذكاء الاصطناعي، العاكسون، أجهزة الاتصالات | الموصلية الحرارية: | 5.0 واط / م ك |
| الكثافة (جم / سم مكعب): | 3.4 | ثابت العزل الكهربائي @1MHz: | 4.5 |
| صلابة: | 65 شور00 | الكلمات الرئيسية: | وسادة سيليكون حرارياً |

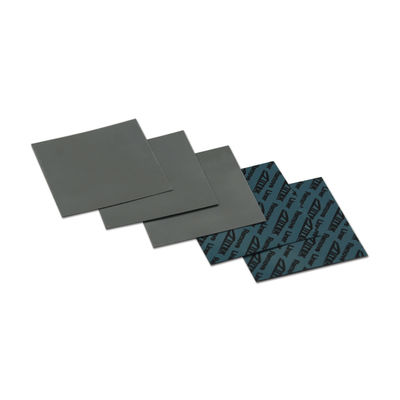

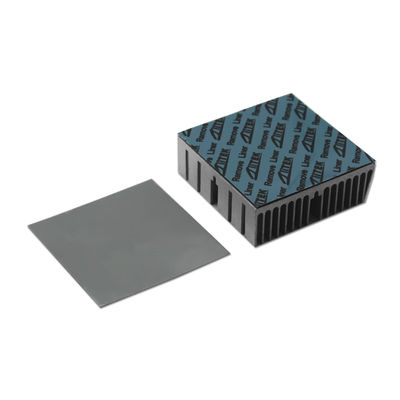

Thermal Silicone Pad 5.0W High Conductivity Heat Dissipation Sheet For AI Servers, Inverters, Telecom Devices
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
The TIF®500-50-11US Series is an ultra soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with extreme gel grade flexibility to achieve a perfect fit with low stress.It is suitable for solving problems such as large tolerances,uneven surfaces, and susceptibility of precision components to mechanical damage in high-precision assembly.
Features:
> Good thermal conductivity: 5.0W/mK
> Ultra soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> AI Servers, Inverters, Telecom Devices
> Power tools
> Network communication products
> Electric vehicle batteries Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®500-50-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.50) |
0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | |
|
5.0 W/m-K |
ISO22007 | ||
Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
