تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتج: | ارتفاع درجة الحرارة سيليكون المطاط ورقة المقاومة للحرارة وسادة سيليكون حراريا للذكاء الاصطناعي | لون: | رمادي داكن |
|---|---|---|---|
| الكلمات الرئيسية: | وسادة سيليكون حرارياً | الموصلية الحرارية: | 1.8 واط / مللي كلفن |
| الكثافة (جم / سم مكعب): | 2.5 | ثابت العزل الكهربائي @1MHz: | 4.2 |
| صلابة: | 65 شور00 | تطبيق: | منظمة العفو الدولية |

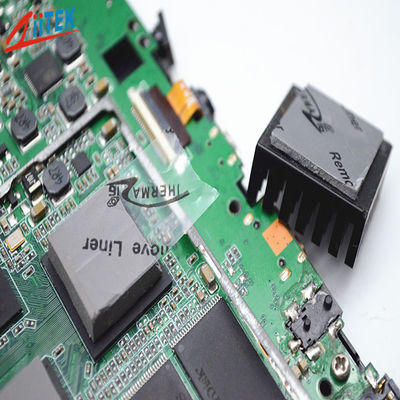

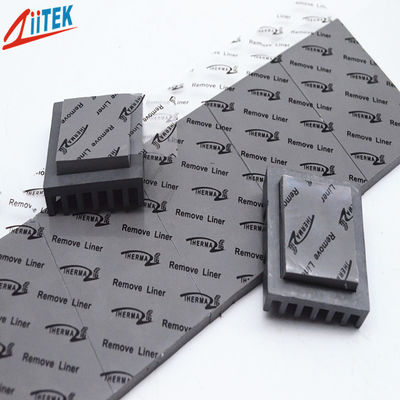

High Temperature Silicone Rubber Sheet Heat Resistance Pad Thermally Silicone Pad For AI
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIF®500-18-11US Series is a universal thermal pad with balanced performance.It provides good thermal conductivity and moderate hardness. This balanced design combines good surface adhesion and excellent operational convenience, providing effective heat transfer paths and basic physical protection for a wide range of electronic components.The ideal choice for addressing the needs of medium to
high power heat dissipation,achieving the best balance between cost and performance.
Features:
> Good thermal conductivity: 1.8W/mK
> Good softness and filling properties
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> AI
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures
| Typical Properties of TIF®500-18-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.5 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.50) |
0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.2 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 1.8 W/m-K | ASTM D5470 | |
|
1.8 W/m-K |
ISO22007 | ||
Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
