تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتجات: | حجم مخصص وسادة حرارية ضوئية 1-15 واط 0.5 مللي متر ~ 5.0 مللي متر سيليكون Themals منصات موصلة لتبريد | الكلمات الرئيسية: | وسادة حرارية |
|---|---|---|---|
| الموصلية الحرارية: | 1.5 واط / م ك | لون: | أخضر |
| سماكة: | 0.020 "(0.5 مم) ~ 0.200" (5.0 مم) | صلابة: | 27 شاطئ 00 |
| درجة حرارة الاستخدام المستمر: | -45 إلى 200 درجة مئوية | عينة: | عينة مجانية |
| طلب: | تبريد الكمبيوتر المحمول GPU Ssd بواسطة الطاقة الكهروضوئية |

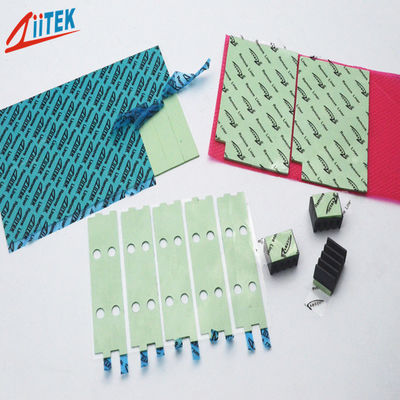

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling
The TIF®100-07U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

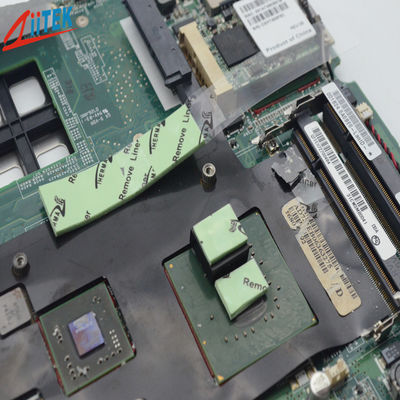

Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
| Typical Properties of TIF®100-07U Series | |||
| Property | Value | Test method | |
| Color | Green | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(0.50mm) | ASTM D374 | |
| Specific Gravity | 2.2g/cc | ASTM D297 | |
| Hardness | 27 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 3.5 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Outgassing(TML) | 0.35% | ASTM E595 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
